Indirect Heat Transfer Dryer

Cylinder capacity: 9-285m³

Processing capacity: 10-30t/h

Application area: metallurgy industry, chemical industry, building material, mining machinery.

The Handling Materials and Application of Indirect Heat Transfer Dryer:

Indirect Heat Transfer Dryer is widely applied in mining, metallurgy, building materials, chemistry and other industries, mainly being used to process mineral powder, slag, clay, limestone, lignite and other materials.

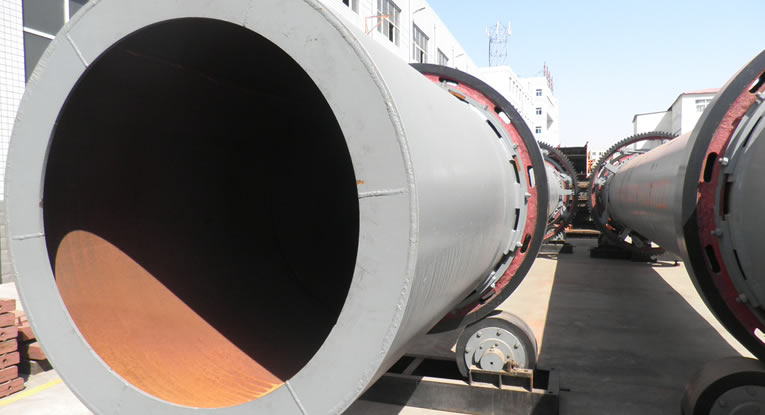

industrial_dryer

The Main Components of Indirect Heat Transfer Dryer:

Indirect Heat Transfer Dryer is mainly composed of rotary body, lifting plate, transmission, supporting device, sealing ring and other components.

The Working Process of Indirect Heat Transfer Dryer:

Those Material being dried enter into the Indirect Heat Transfer Dryer , and as dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the drier. When the material gets high enough to roll back off the fins, and then it falls back down to the bottom of the drier, passing through the hot gas stream as it falls.

Technical Parameter

Spec./m (Dia.×Length)	Shell Cubage (m³)	Capacity (t/h)	Installation Obliquity (%)	Highest Inlet Air Temperature (℃)	Main Motor (kw)	Weight (t)
Φ1.2×8.0	9.0	1.9～2.4	3～5	700～800	7.5	9
Φ1.2×10	11.3	2.4～3.0	3～5	700～800	7.5	11
Φ1.5×12	21.2	4.5～5.7	3～5	700～800	15	18.5
Φ1.5×14	24.7	5.3～6.6	3～5	700～800	15	19.7
Φ1.5×15	26.5	5.7～7.1	3～5	700～800	15	20.5
Φ1.8×12	30.5	6.5～8.1	3～5	700～800	18.5	21.5
Φ1.8×14	35.6	7.6～9.5	3～5	700～800	18.5	23
Φ2.2×12	45.6	9.7～12.2	3～5	700～800	22	33.5
Φ2.2×14	53.2	11.4～14.2	3～5	700～800	22	36
Φ2.2×16	60.8	13.0～16.2	3～5	700～800	22	38
Φ2.4×14	63.3	13.5～16.9	3～5	700～800	37	45
Φ2.4×18	81.4	17.4～21.7	3～5	700～800	37	49
Φ2.4×20	90.4	19.3～24.1	3～5	700～800	45	54
Φ2.4×22	99.5	21.2～26.5	3～5	700～800	45	58
Φ2.6×24	127.4	27.2～34.0	3～5	700～800	55	73
Φ3.0×20	141.3	30.1～37.7	3～5	700～800	75	85
Φ3.0×25	176.6	37.7～47.1	3～5	700～800	75	95
Φ3.2×25	201	42.9～53.6	3～5	700～800	90	110
Φ3.6×28	285	60.8～76.0	3～5	700～800	160	135

Technical parameters of indirect heat dryer:

Shell diameter ×shell Length Items	Inside diameter of outer shell (mm)	Inside diameter of inner shell (mm)	Shell Length (m)	Shell cubage (m³)	Shell obliquity	Lifting blade form	Highest inlet air temperature (℃)	Dimensions (m)
Φ1.5×15m	1500	500	15	20.27	3-5%	Lifting form	850	16.2×2.7×2.7
Φ1.5×17m			17	22.97				18.2×2.7×2.7
Φ1.5×19m			19	25.68				20.0×2.9×2.9
Φ1.8×21m	1800	650	21	35.91	3-5%	Lifting form	850	22.5×2.7×2.7
Φ1.8×23m			23	39.33				24.5×2.9×2.9
Φ1.8×25m			25	42.75				26.5×2.9×2.9
Φ2.2×21m	2200	800	21	58.10	3-5%	Lifting form	850	----
Φ2.2×23m			23	63.61
Φ2.2×25m			25	69.15
