Spiral Sand Washer

Spiral Sand Washer

Processing ability: 770-2800T/24H

Screw diameter: 1500~3000mm

Material handling: limestone, talc, graphite, barite, mica, kaolin.

Email us: sell@hxjq.com

The Description and Function of Spiral Washer:

Spiral Sand Washer is widely used in the separation of ore in closed circuits with ball mills, grading ore and fine slit in gravity mills, grading granularity and flow of metal ore-dressing, and de-sliming and dehydrating in washing.

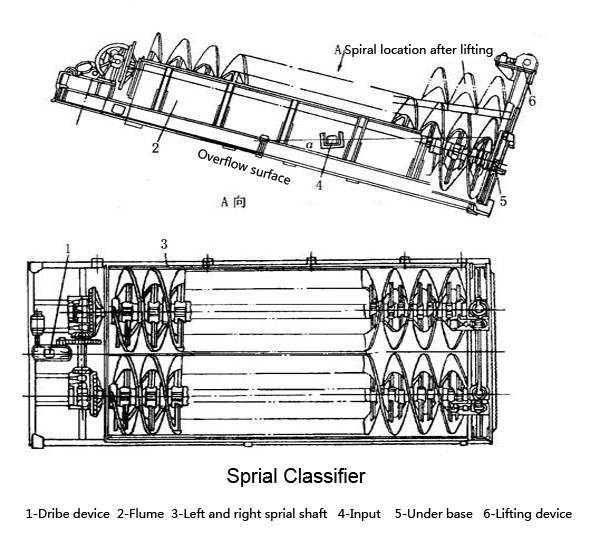

The Inner Structure and Application of Spiral Sand Washer:

Spiral Sand Washer is consists of cell body, speed reducer, motor shaft, central shaft, spiral scatters, support parts, which can be applied in metallurgy, building materials, water and electricity industries washing, grading, impurity, etc.


The Performance Characteristics of Spiral Sand Washer:

1. This kind of spiral washer is slope slightly installed, it has highly efficiency of cleaning the sand materials.

2. The spiral washer can handle the materials which size within 0-30mm, it can eliminate the dust ,clay very quickly and totally.

3. It is easy to operation and very easy to maintain.

Technical Parameter

Model Capacity(t/h) Motor power(kw)
LX-515 5-15 5.5
LX-765 20-60 11
LX-915 30-100 15
2LX-915 60-200 15×2
LX-1115 40-120 22
2LX-1115 80-240 2×22
