Wotetrack Jaw Crusher Station -Hongxing Machinery(HXJQ)

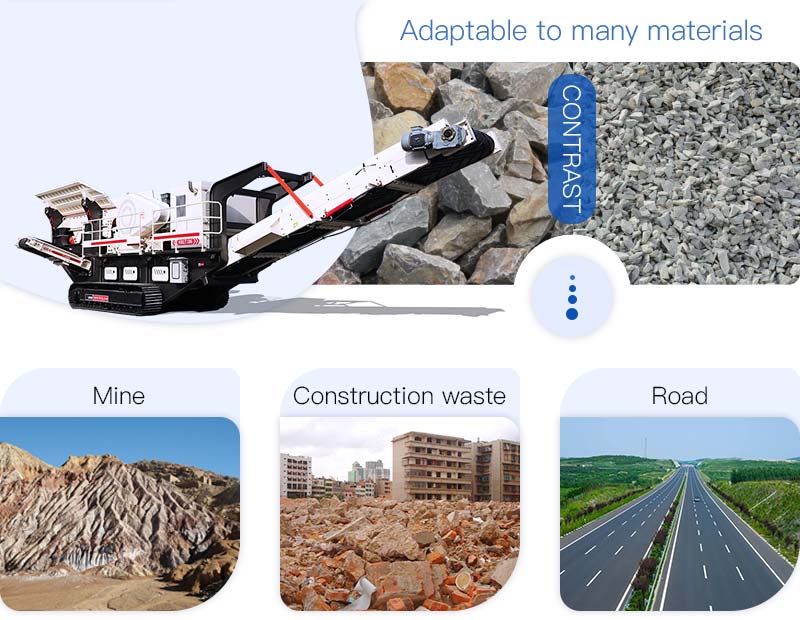

The Description and Application of Wotetrack Jaw Crusher Station:

This machine is a latest rock crushing equipment crushing, which is mainly used in the fields of metallurgy, chemistry, construction materials, hydroelectric power and so on.

Users can apply various allocations according to different materials of different type, scale and requirement of readymade materials. The mobile jaw crusher can greatly expand the working scope of coarse crushing.

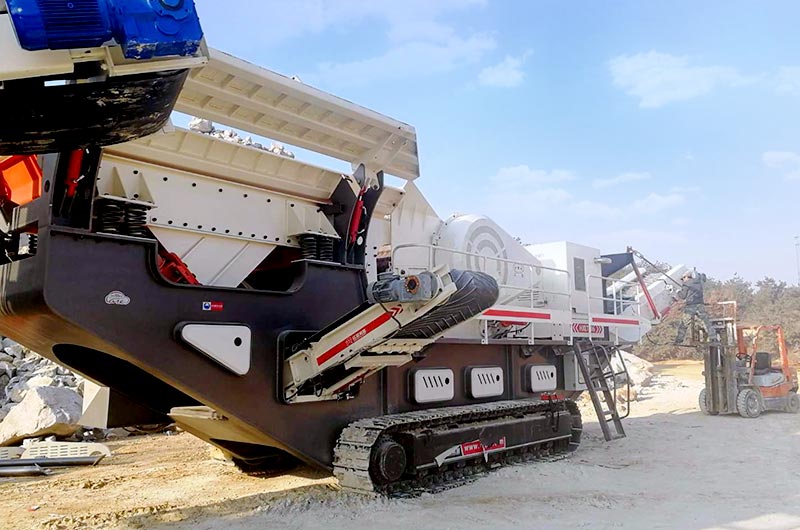

mobile_jaw_crusher

The Advantages and Benefits of Wotetrack Jaw Crusher Station:

This machine can directly choose the working site, be directly driven to the working site without transportation and the materials can directly reach the granularity of final products. It is especially suitable for processing and crushing building wastes, and this is the the direct way to save the costs.

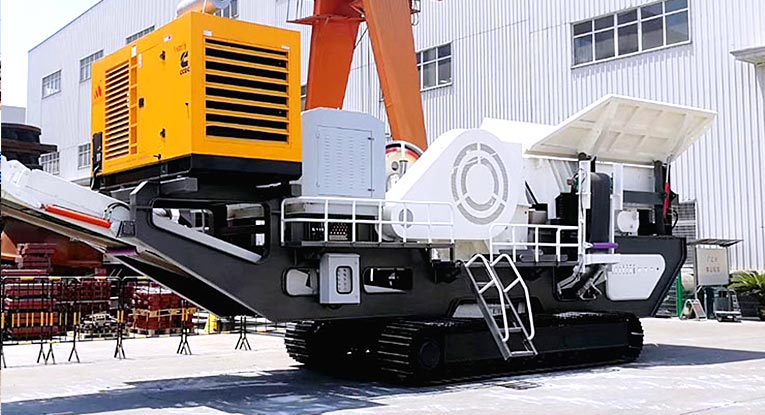

mobile_jaw_crusher

The Performance Characteristics of Wotetrack Jaw Crusher Station:

1. Feeding guard adopts hierarchical type with two layers structure which provides prerequisites for widening.
2. It adopts ship form steel structure and low vehicle chassis with light weight.
3. Feeding guard is lifted by hydraulic pressure, easy to be loaded and unloaded, conveniently and reliably to be fixed.

Technical Parameter

Model		WT110	WT110S	WT1213	WT1213S	WT1315
Dimensions of Transmission Devices	Length	14000mm	16000mm	15500mm	19000mm	17000mm
	Width	3000mm	3200mm	3200mm	3600mm	3200mm
	Height	3600mm	3600mm	3800mm	3800mm	3800mm
	Weight	40t	45t	53t	60t	65t
Feeder	Hopper Volume	3m³	3m³	5m³	5m³	5m³
Feeder	Loading Height	3900mm	4000mm	3900mm	4100mm	4000mm
Primary Screen	Power	5.2kw	5.2kw	6.12kw	6.12kw	6.12kw
Primary Screen	Sieve Dimensions	1040×924mm	1040×924mm	1140×924mm	1140×924mm	1240×930mm
Crusher	Model	CI1110M	CI1110M	CI1213M	CI1213M	CI1315M
	Inlet Dimensions	1020×860mm	1020×860mm	1320×900mm	1320×900mm	1540×900mm
	Max.Feeding Size	400mm	400mm	500mm	500mm	600mm
The Feeder at the Bottom	Hopper Volume	0.8m³	0.8m³	1m³	1m³	1.5m³
The Feeder at the Bottom	Power	5.2kw	5.2kw	5.2kw	5.2kw	6.12kw
Unearthed Belt Conveyors	Dimensions(Width×Length)	650×3500mm	650×3500mm	650×3500mm	650×3500mm	650×3500mm
Unearthed Belt Conveyors	Dumping Height	2200mm	2200mm	2200mm	2200mm	2400mm
Main Belt Conveyor	Dimensions(Width×Length)	1000×8500mm	1000×8500mm	1000×9900mm	1000×9900mm	1200×11000mm
Main Belt Conveyor	Dumping Height	3300mm	3300mm	3500mm	3500mm	3800mm
Secondary Screen	Power	○	6.12kw	○	6.12kw	○
Secondary Screen	Sieve Dimensions	○	1500×3600	○	1500×4200	○
Belt Conveyors at the Bottom	Dimensions(Width×Length)	○	1000×5800mm	○	1000×6200mm	○
Belt Conveyors at the Bottom	Dumping Height	○	2900mm	○	3000mm	○
Transferring Belt Conveyor	Dimensions(Width×Length)	○	650×2500mm	○	650×2800mm	○
Transferring Belt Conveyor	Dumping Height	○	1400mm	○	1400mm	○
Belt Conveyors for Discharging Material	Dimensions(Width×Length)	○	500×8000mm	○	500×9200mm	○
Belt Conveyors for Discharging Material	Dumping Height	○	4200mm	○	4500mm	○
Iron Remover	Model	RCYQ-10	RCYQ-10	RCYQ-10	RCYQ-10	RCYQ-10
Diesel Engine	Power	96kw	106kw	106kw	132kw	132kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins	Carter Perkins	Carter Perkins	Carter Perkins
The Main Machine	Power	253kw	274kw	304kw	324.4kw	366kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)	Wired/Wireless (optional)	Wired/Wireless (optional)	Wired/Wireless (optional)

Model WT110 and WT110S

Model		WT110	WT110S
Dimensions of Transmission Devices	Length	14000mm	17000mm
	Width	3000mm	3200mm
	Height	3600mm	3600mm
	Weight	40t	45t
Feeder	Hopper Volume	3m³	5m³
Feeder	Loading Height	3900mm	4000mm
Primary Screen	Power	5.2kw	6.12kw
Primary Screen	Sieve Dimensions	1040×924mm	1040×924mm
Crusher	Model	CI1110M	CI1315M
	Inlet Dimensions	1020×860mm	1020×860mm
	Max.Feeding Size	400mm	400mm
The Feeder at the Bottom	Hopper Volume	0.8m³	1.5m³
The Feeder at the Bottom	Power	5.2kw	5.2kw
Unearthed Belt Conveyors	Dimensions(Width×Length)	650×3500mm	650×3500mm
Unearthed Belt Conveyors	Dumping Height	2200mm	2200mm
Main Belt Conveyor	Dimensions(Width×Length)	1000×8500mm	1200×11000mm
Main Belt Conveyor	Dumping Height	3300mm	3300mm
Secondary Screen	Power	○	○
Secondary Screen	Sieve Dimensions	○	1500×3600
Belt Conveyors at the Bottom	Dimensions(Width×Length)	○	○
Belt Conveyors at the Bottom	Dumping Height	○	2900mm
Transferring Belt Conveyor	Dimensions(Width×Length)	○	○
Transferring Belt Conveyor	Dumping Height	○	1400mm
Belt Conveyors for Discharging Material	Dimensions(Width×Length)	○	○
Belt Conveyors for Discharging Material	Dumping Height	○	4200mm
Iron Remover	Model	RCYQ-10	RCYQ-10
Diesel Engine	Power	96kw	132kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins
The Main Machine	Power	253kw	366kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)

Model WT1213 and WT1213S

Model		WT1213	WT1213S
Dimensions of Transmission Devices	Length	15500mm	17000mm
	Width	3200mm	3600mm
	Height	3800mm	3800mm
	Weight	53t	60t
Feeder	Hopper Volume	5m³	5m³
Feeder	Loading Height	3900mm	4100mm
Primary Screen	Power	6.12kw	6.12kw
Primary Screen	Sieve Dimensions	1140×924mm	1140×924mm
Crusher	Model	CI1213M	CI1315M
	Inlet Dimensions	1320×900mm	1320×900mm
	Max.Feeding Size	500mm	500mm
The Feeder at the Bottom	Hopper Volume	1m³	1.5m³
The Feeder at the Bottom	Power	5.2kw	5.2kw
Unearthed Belt Conveyors	Dimensions(Width×Length)	650×3500mm	650×3500mm
Unearthed Belt Conveyors	Dumping Height	2200mm	2200mm
Main Belt Conveyor	Dimensions(Width×Length)	1000×9900mm	1200×11000mm
Main Belt Conveyor	Dumping Height	3500mm	3500mm
Secondary Screen	Power	○	○
Secondary Screen	Sieve Dimensions	○	1500×4200
Belt Conveyors at the Bottom	Dimensions(Width×Length)	○	○
Belt Conveyors at the Bottom	Dumping Height	○	3000mm
Transferring Belt Conveyor	Dimensions(Width×Length)	○	○
Transferring Belt Conveyor	Dumping Height	○	1400mm
Belt Conveyors for Discharging Material	Dimensions(Width×Length)	○	○
Belt Conveyors for Discharging Material	Dumping Height	○	4500mm
Iron Remover	Model	RCYQ-10	RCYQ-10
Diesel Engine	Power	106kw	132kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins
The Main Machine	Power	304kw	366kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)

Model WT1315

Model		WT1315
Dimensions of Transmission Devices	Length	17000mm
	Width	3200mm
	Height	3800mm
	Weight	65t
Feeder	Hopper Volume	5m³
Feeder	Loading Height	4000mm
Primary Screen	Power	6.12kw
Primary Screen	Sieve Dimensions	1240×930mm
Crusher	Model	CI1315M
	Inlet Dimensions	1540×900mm
	Max.Feeding Size	600mm
The Feeder at the Bottom	Hopper Volume	1.5m³
The Feeder at the Bottom	Power	6.12kw
Unearthed Belt Conveyors	Dimensions(Width×Length)	650×3500mm
Unearthed Belt Conveyors	Dumping Height	2400mm
Main Belt Conveyor	Dimensions(Width×Length)	1200×11000mm
Main Belt Conveyor	Dumping Height	3800mm
Secondary Screen	Power	○
Secondary Screen	Sieve Dimensions	○
Belt Conveyors at the Bottom	Dimensions(Width×Length)	○
Belt Conveyors at the Bottom	Dumping Height	○
Transferring Belt Conveyor	Dimensions(Width×Length)	○
Transferring Belt Conveyor	Dumping Height	○
Belt Conveyors for Discharging Material	Dimensions(Width×Length)	○
Belt Conveyors for Discharging Material	Dumping Height	○
Iron Remover	Model	RCYQ-10
Diesel Engine	Power	132kw
Diesel Engine	Manufacturer	Carter Perkins
The Main Machine	Power	366kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)
